Multiplayer Text Chat - Jimmy
I’ve added text chat to Logic World! Finally, you can send messages to the folks you’re playing with.
I had two very excruciating hangups while working on this feature. I will tell them to you now, because sharing my pain with others helps me to process it in a healthy way.
When I first made chat messages appear, there was a confusing and very annoying bug: each time a new chat message appeared, all of the chat messages would jump to a different position on the screen for a single frame. Obviously this is unacceptable; you can’t have a distracting flicker appear every single time there’s a new message. It seemed like the LayoutGroup responsible for setting the positions of the chat messages was taking an extra frame to fully update, so I manually updated it from code on the correct frame. But this did not work. 🤔
I started digging into my LayoutGroup setup, looking for settings that might have caused the issue. I tried all manner of code-based solutions. Nothing worked -- that horrible jitter just watched me and laughed its evil laugh. I was particularly annoyed because there was no jitter in the development console, and Chat uses pretty much the same systems.
In desperation, I dug into Unity’s LayoutGroup source code, trying to figure out where the single frame of jitter was coming from. Unity’s code here is... well, it’s not amazing. They do some questionable things which makes the code very hard to understand and follow. It took a lot of patience, but I eventually dug deep enough to find where errant behavior was originating from. A particular function that was returning the incorrect height value for a single frame. But this function is only called when m_ChildScaleHeight is true. What’s m_ChildScaleHeight?, I wondered.
It turns out that I had accidentally checked a checkbox called “Use Child Scale: Height”. I unchecked this checkbox and the jitter went away.
Six! And a half! Hours! For one checkbox! I do love programming, but sometimes it makes me want to throw my computer off of a bridge.

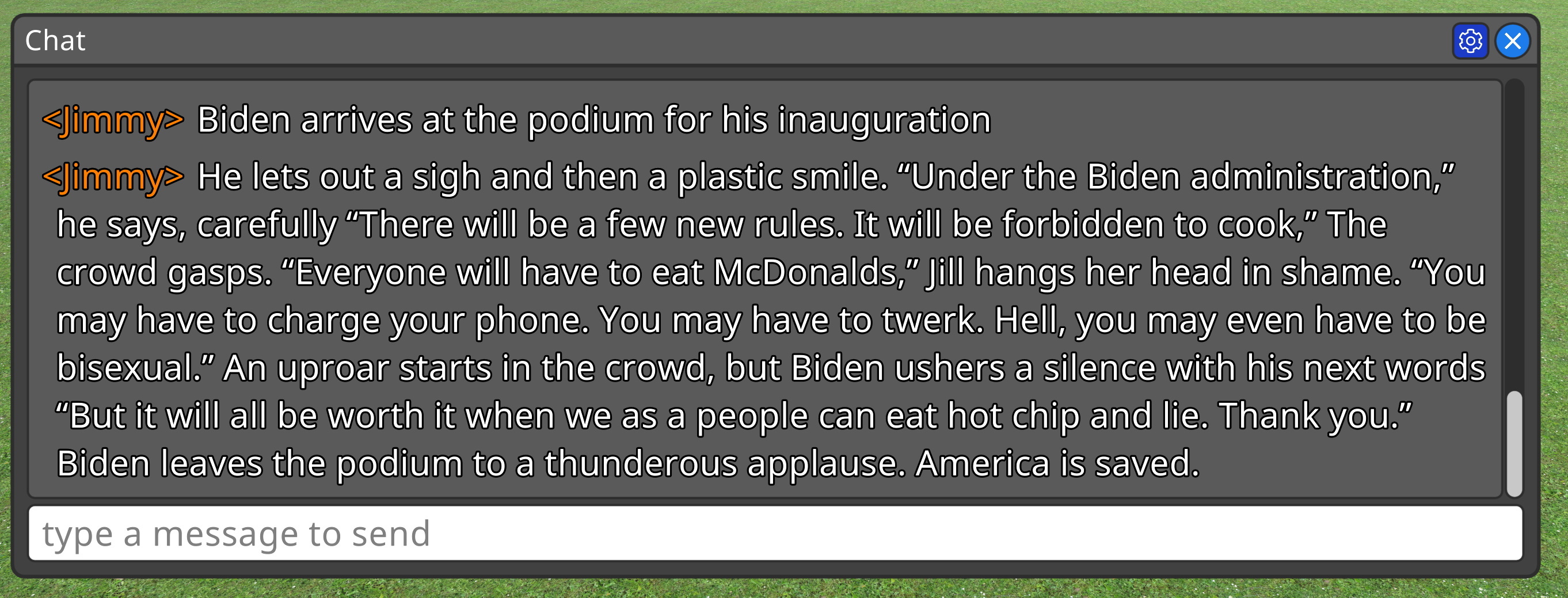

The other major issue came about when I wanted to do some fancy formatting on the chat message text. Notice that in chat messages which span multiple lines, lines two through infinity are indented slightly compared to the first line. This helps the message to be distinguishable as a single cohesive object.
This is not a formatting function that is natively supported by TextMeshPro, Unity’s text rendering library. It’ll indent all lines, sure; it’ll indent just the first line, no problem; but indenting all lines except the first line? There’s no quick and easy way to do that.
I love TextMeshPro a lot, but what I don’t love is its documentation, or rather its utter lack of documentation for any slightly advanced feature. Figuring out how to achieve this effect involved a lot of digging through Unity forums, a lot of digging through TMP source code, and a lot of trial and error. But, obviously, I eventually got it.
This one only ate up two hours of my life, but it nonetheless drove me ever so slightly slightly closer to total madness.
These are the sacrifices I make for you people.
SharpVue Shenanigans - Felipe
Logic World’s modding system is extensive, but to really enable modders to take advantage of it, we need documentation for all that code. That documentation should be hosted online in an easily accessible format.. Because Logic World is written in C#, I thought that DocFX would be a great fit. It generates a website using plain HTML that describes all of the project’s types and methods, and also allows you to write additional Markdown documents. However, while the resulting webpage did look and work great, I did not like how the tooling itself worked. The docfx command-line interface was clunky and cumbersome, and it’s also very slow for some reason.
This is why I started writing SharpVue. It is very similar in concept to DocFX, however the generation is much faster and the command is very straightforward to use. Another big difference is that the resulting webpage is an SPA written in no other than Vue, which allows distributing the page as a single .html file. You can check a demo documentation page here, which can be downloaded and viewed offline as a single HTML file. Keep in mind that the project is still pretty young and there are some bugs and missing features, and don’t look too closely at the contents since it’s all subject to change.
I had lots of fun working on SharpVue, especially since I got to integrate a Vue project with a C# one which I both really like. It was also really rewarding to see the documentation slowly build up as I implemented more features.
Bugs Fixed This Week
- Fixed being able to make your teleport shells cast shadows if you turned on the “see your own shadow” setting during a teleport sequence. Now, teleport shells intentionally cast shadows, which looks awesome, and they are properly handled by the “see your own shadow” setting.
- Fixed fancy pause menu music effects persisting to the main menu music
- New character controller: fixed player movement not being frozen during the first phase of the teleportation sequence
- New character controller: fixed weird collision with the ground while flying
- New character controller: fixed noclip mode not working
- New character controller: fixed inverse coyote time not working
- New character controller: fixed raycasts using the position of the player on the previous frame instead of this frame
---------------------------------------------
We'll keep releasing these weekly updates right up until the game comes out. To make sure you don't miss them, you can sign up for our newsletter or join the official Discord, and of course you can wishlist and follow the game right here on Steam.
